Description

DiscoPlus MR

DiscoPlus M series guarantees the excellent result of stubble cultivation, while those machines are also very suitable for seedbed preparation or for leveling the soil after ploughing. The large diameter of discs obtains deep working cultivation in high speed even under high amounts of organic mass. The robust frame, the very limited wear and only a few parts that require maintenance are only some of the main characteristics that contributing to uniform and intensive mixing of organic matter. The diameter of discs 520mm or 570mm obtains working cultivation up to 12cm in high speed even under very severe conditions. One of the main characteristics is the uniform and intensive mixing of organic matter.

DiscoPlus MR, mounted disc harrow with foldable frame, working width 4m, 5m & 6m
The discs of DiscoPlus M and DiscoPlus MR are suspended in pairs via a rubber suspension made of 4 rubber blocks. That suspension is maintenance free, very quiet during work and operates even in high amounts of organic mass . Excellent is the result of stubble cultivation, while those machines are also very suitable for seedbed preparation or for leveling the soil after ploughing.

  • Details
  • Accessories
  • Rollers
  • Technical Data
  • Brochures
  • 3-point hitch cat. 3
  • Hydraulic folding frame 250x250x10 mm
  • 32, 40 or 48 heavy duty notched discs, Ø520 mm
  • Security system with rubber blocks Ø40 mm
  • High load capacity bearings – maintenance free
  • Manual adjustable rear roller

Notched Discs

The grooved form of the notched discs (Ø520mm or Ø570mm in diameter), combined with their aggressive positioning of the working angle and the larger teeth, allow the working in very hard soils with easy ground penetration, which makes working at high speeds possible. When exceeding the working depth, the soil is being tilled fully flat.

Rubber Sunspension of the disc shanks

Pre-tensioned rubber blocks are protecting the shanks from overloads, while a perfect and smooth contact to the ground is assured. Each shank that holds a pair of discs is suspended on four such rubber blocks. That type of suspension is very flexible and durable, while it protects against stone collisions.

Bearing

The bearing housing is made of seamless steel pipe, it encloses 2 heavy duty ball bearings, while it is double sealed and independently greasable, for prolonged maintenance intervals.

Hydraulically controlled working depth setting

Rake tine harrow

Placed just before the rear cylinder is available as an optional extra. Those harrow tines are very strong, they further break down earth clods, while they expose weed roots and create a flatter and more loose soil surface

Adjustable lateral side deflector

Limits earth thrown from the front disc gangs and vanishes so the furrow caused by them, resulting in a leveled soil surface.

Star disc

Disc scrapers

Reflective warning boards kit with or without lights

Cage roller Ø500mm or Ø580mm

Compacts soil in a well structured surface. It provides a loose, open seed bed for the following sowing or planting operation.

Flat bar roller Ø500mm

Compacts soil in a well structured surface. It provides a loose, open seed bed for the following sowing or planting operation.

Steel ring roller Ø580mm

For clod crushing and very firm recompaction of the soil. Adapted also for heavy and sticky soil conditions.

Spring roller Ø540mm

For high mixing results and perfect levelling capacity, supported by intermediate springs. Self-cleaning due to the vibrating leaf spring.

Knife roller Ø540mm

Provides effective consolidation and cutting effect on clayey or heavy loamy soils.

U-roller Ø540mm

Presses the soil, provides excellent reconsolidation while it turns with minimum slip.

Double cage tandem roller Ø450 & Ø380mm

Leaves a smooth crumbling effect, primarilyu on light to medium heavy soils

Model DiscoPlus MR 400 DiscoPlus MR 500 DiscoPlus MR 600
Working width (m)
4,0
5,0
6,0
Transport width (m)
2,4
2,4
2,4
Number of discs
32
40
48
Weight without roller (kg)
2.250
2.530
2.810
Tractor power (HP)
140-180
180-200
200-240

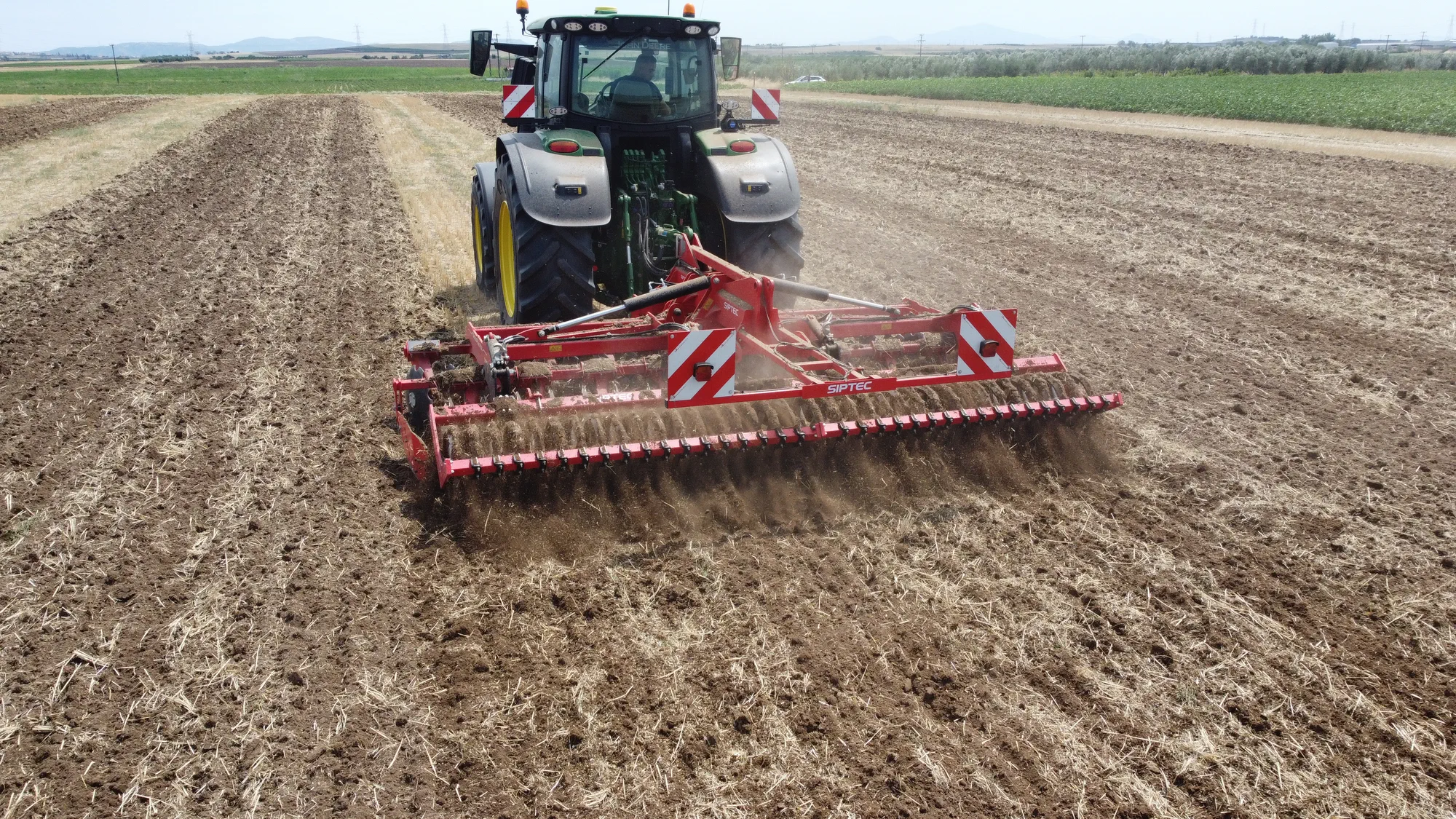

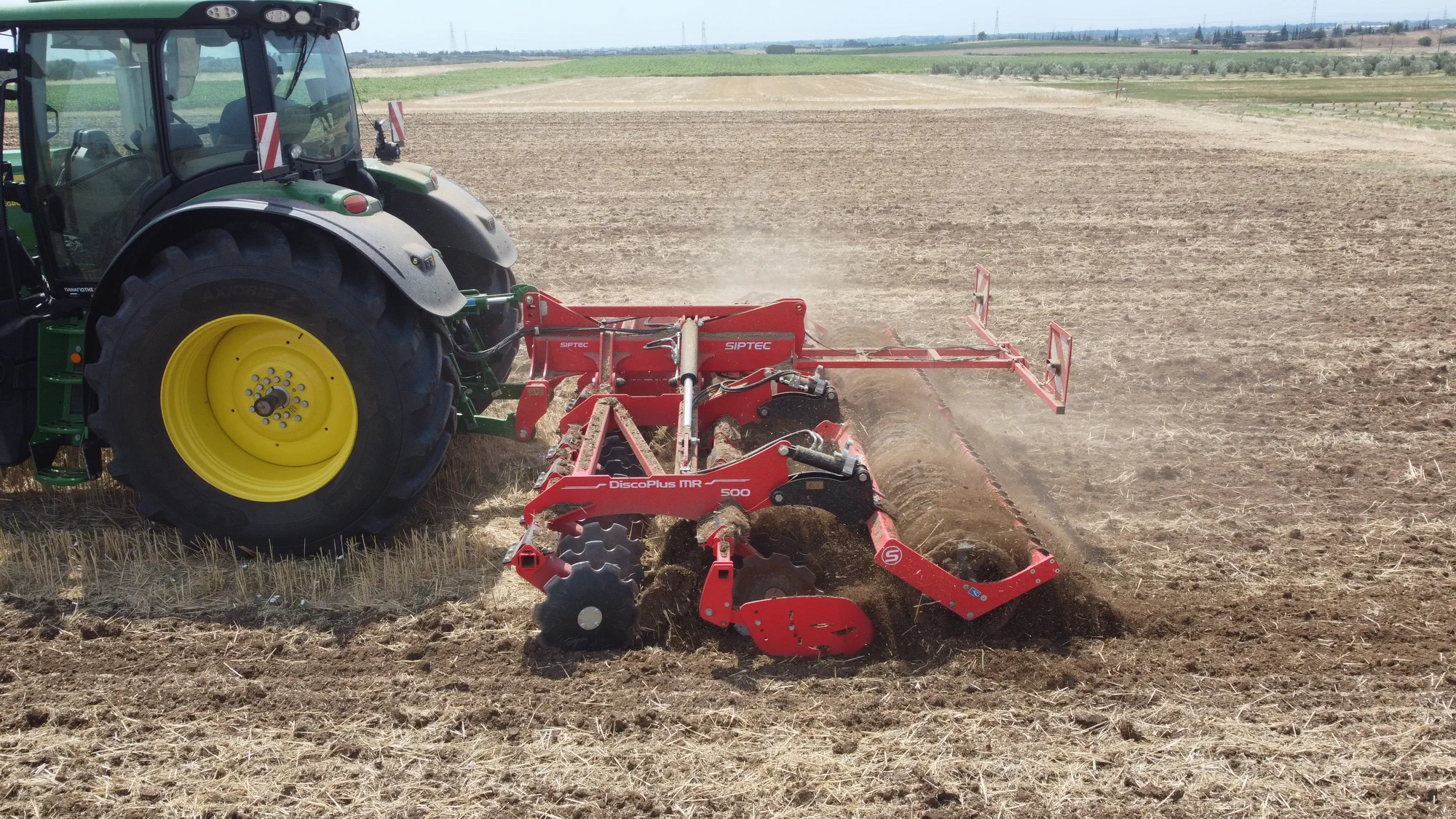

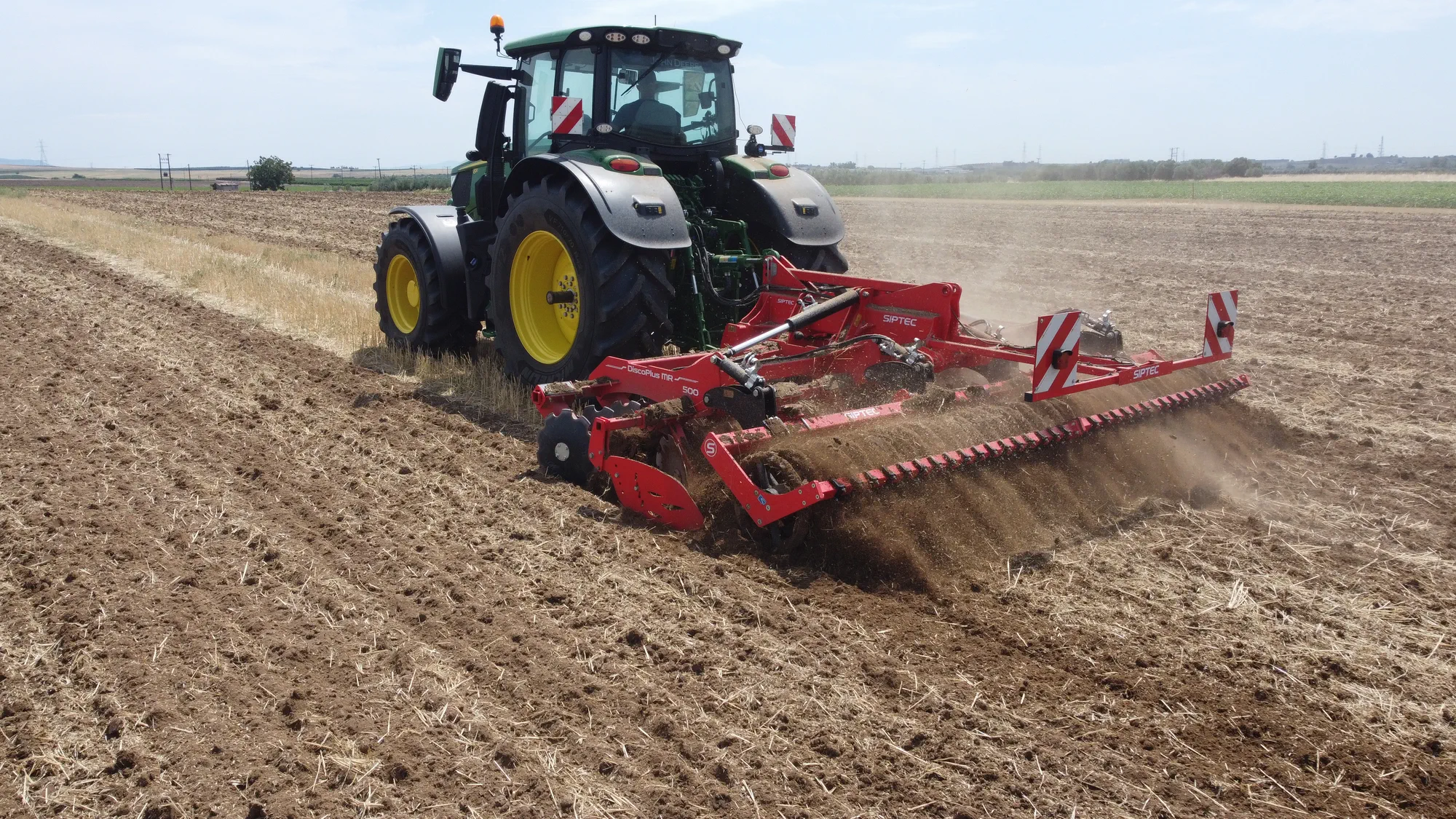

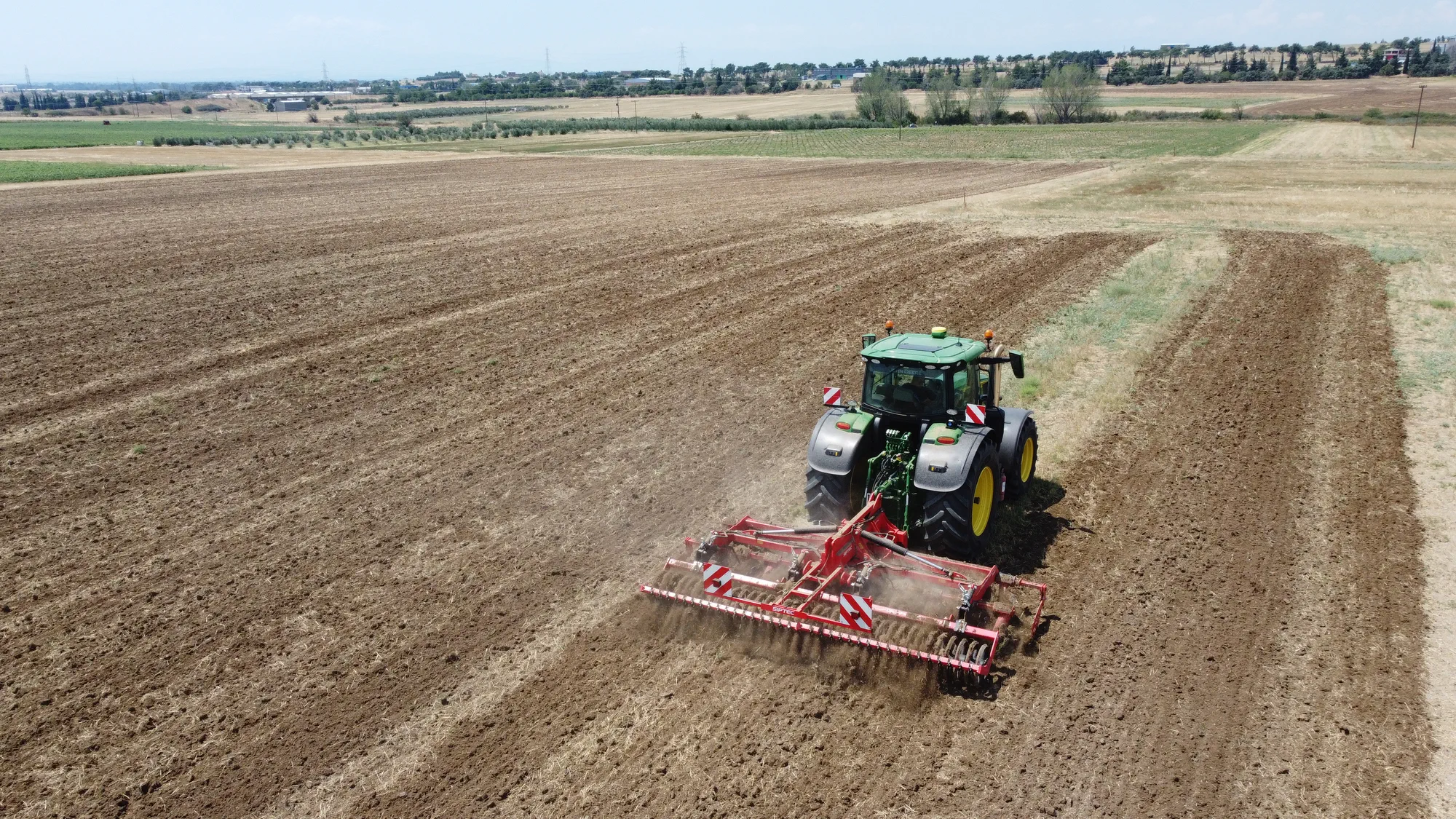

Photo Gallery
