Description

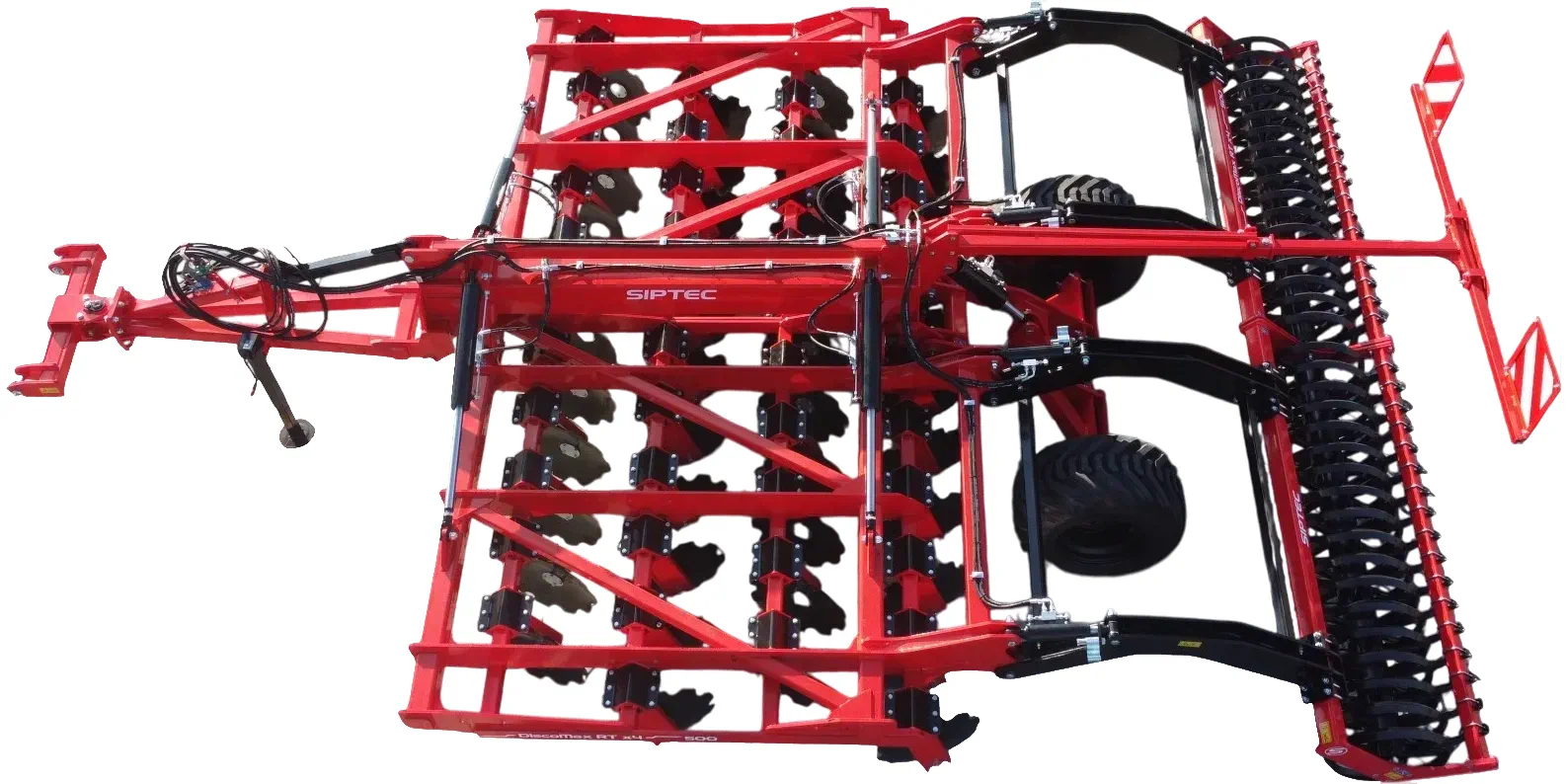

DiscoMax x4

  • DiscoMax x4, mounted rigid frame, working width 3.5m & 4m
  • DiscoMax x4 R, hydraulically foldable frame, mounted, working width from 4m to 7m
  • DiscoMax x4 RT, hydraulically foldable frame, semi-mounted, working width from 4m to 7m

DiscoMax series guarantees the excellent result of stubble cultivation, while are suitable for seedbed preparation or for leveling the soil after ploughing. The large diameter of discs obtains working cultivation in high speed even under high amounts of organic mass. The robust frame, the very limited wear and the maintenance free bearings are only some of the main characteristics. High working speeds due to the excellent soil penetration ability of DiscoMax x4 model series, allow very economical work. The end result of the work is excellent in stubble cultivation and contributes to uniform and intensive mixing of organic matter, since trouble free working is certain, even when large amounts of crop residues are present. DiscoMax x4 are also very appropriate for leveling furrows on plowed land, or for seedbed preparation.
  • Details
  • Accessories
  • Rollers
  • Technical Data

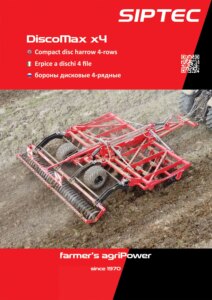

  • Brochures
  • 3-point hitch or trailed
  • 4 rows of discs
  • Heavy duty notched discs Ø570 mm
  • Rigid or hydraulic folding robust frame
  • Security system with rubber blocks Ø40 mm
  • High load capacity bearings – maintenance free
  • Manual adjustable rear roller

Notched Discs

The grooved form of the notched discs (Ø510 mm in diameter), combined with their aggressive positioning of the working angle and the larg teeth, allow the working in very hard soils with easy ground penetration, which makes working at high speeds possible. When exceeding the working depth, the soil is being tilled fully flat.

Rubber Sunspension of the disc shanks

Every disc shank is suspended via a rubber suspension of 4 durable rubber blocks. This type of suspension is practically maintenance free, while it protects effectively against overloads that stem from stone collisions and other obstacles. Each shank is high enough to enable working even in high grass.

Bearing

One maintenance free bearing for each disc, which encloses two angular contact ball bearings, triple sealed and pre lubricated for its whole lifespan.

Shank stop

Prevents the movement of the shank after prolonged use

Hydraulically controlled working depth setting

Rake tine harrow

Placed just before the rear cylinder is available as an optional extra. Those harrow tines are very strong, they further break down earth clods, while they expose weed roots and create a flatter and more loose soil surface

Adjustable lateral side deflector

Limits earth thrown from the front disc gangs and vanishes so the furrow caused by them, resulting in a leveled soil surface.

Star disc

Reflective warning boards kit with or without lights

Cage roller Ø500mm

Compacts soil in a well structured surface. It provides a loose, open seed bed for the following sowing or planting operation.

Steel ring roller Ø580mm

For clod crushing and very firm recompaction of the soil. Adapted also for heavy and sticky soil conditions.

Knife roller Ø540mm

Provides effective consolidation and cutting effect on clayey or heavy loamy soils.

U-roller Ø540mm

Presses the soil, provides excellent reconsolidation while it turns with minimum slip.

Double U roller (2x) Ø540mm

Presses the soil, provides excellent reconsolidation while it turns with minimum slip.

Model DiscoMax T 3.5x4 DiscoMax T 4x4 DiscoMax T 5x4 DiscoMax RT 5x4 DiscoMax RT 6x4 DiscoMax RT 7x4 DiscoMax RT 9x4
Working width (m)
3,5
4,0
5,0
5,0
6,0
7,0
9,0
Transport width (m)
3,5
4,0
5,0
3,0
3,0
3,5
3,5
Number of discs
32
36
44
44
52
60
76
Weight without roller (kg)
2.630
2.910
3.270
3.580
4.300
5.000
6.330
Tractor power (HP)
140-170
180-210
210-260
210-260
260-290
300-350
350-450

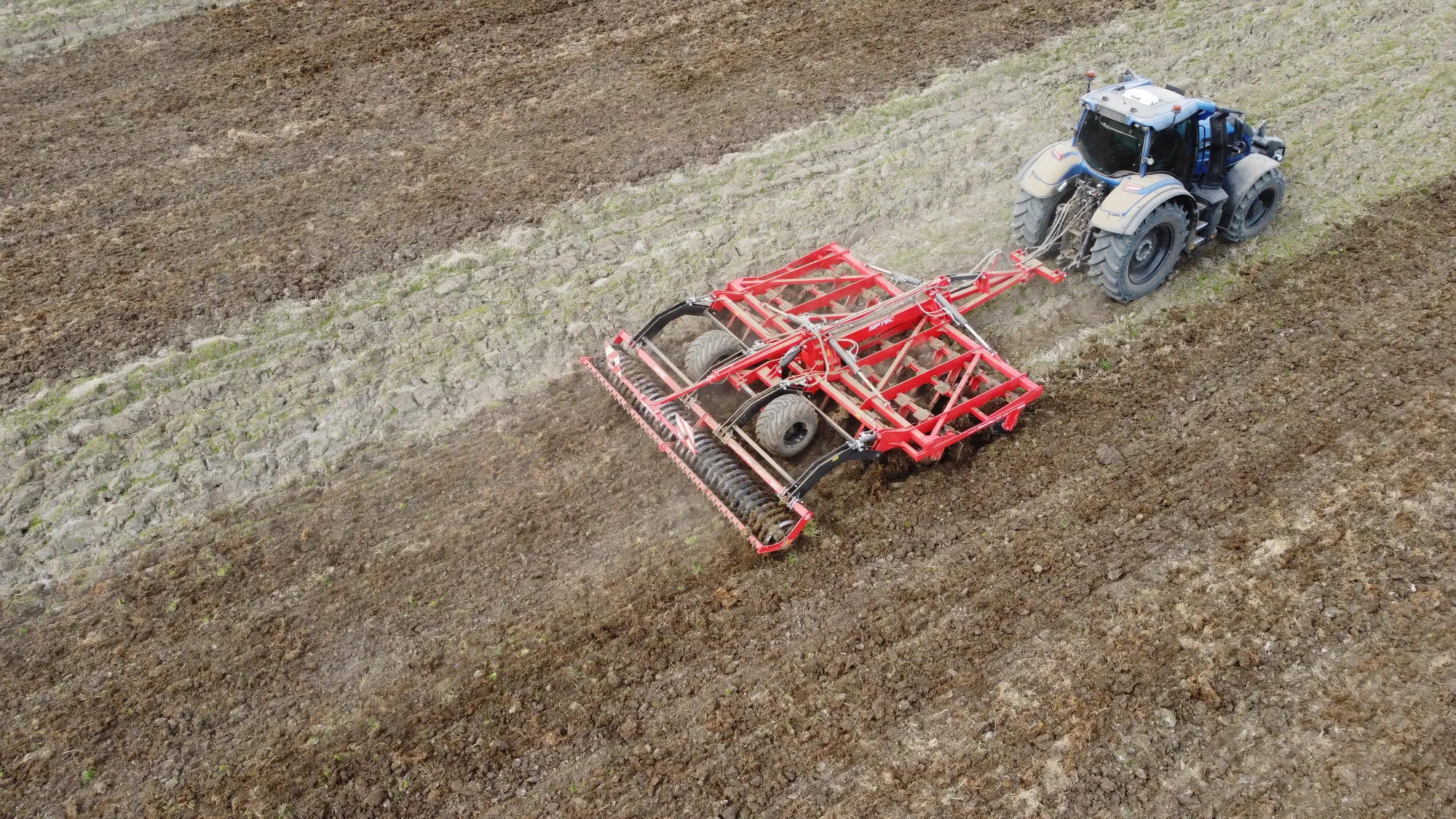

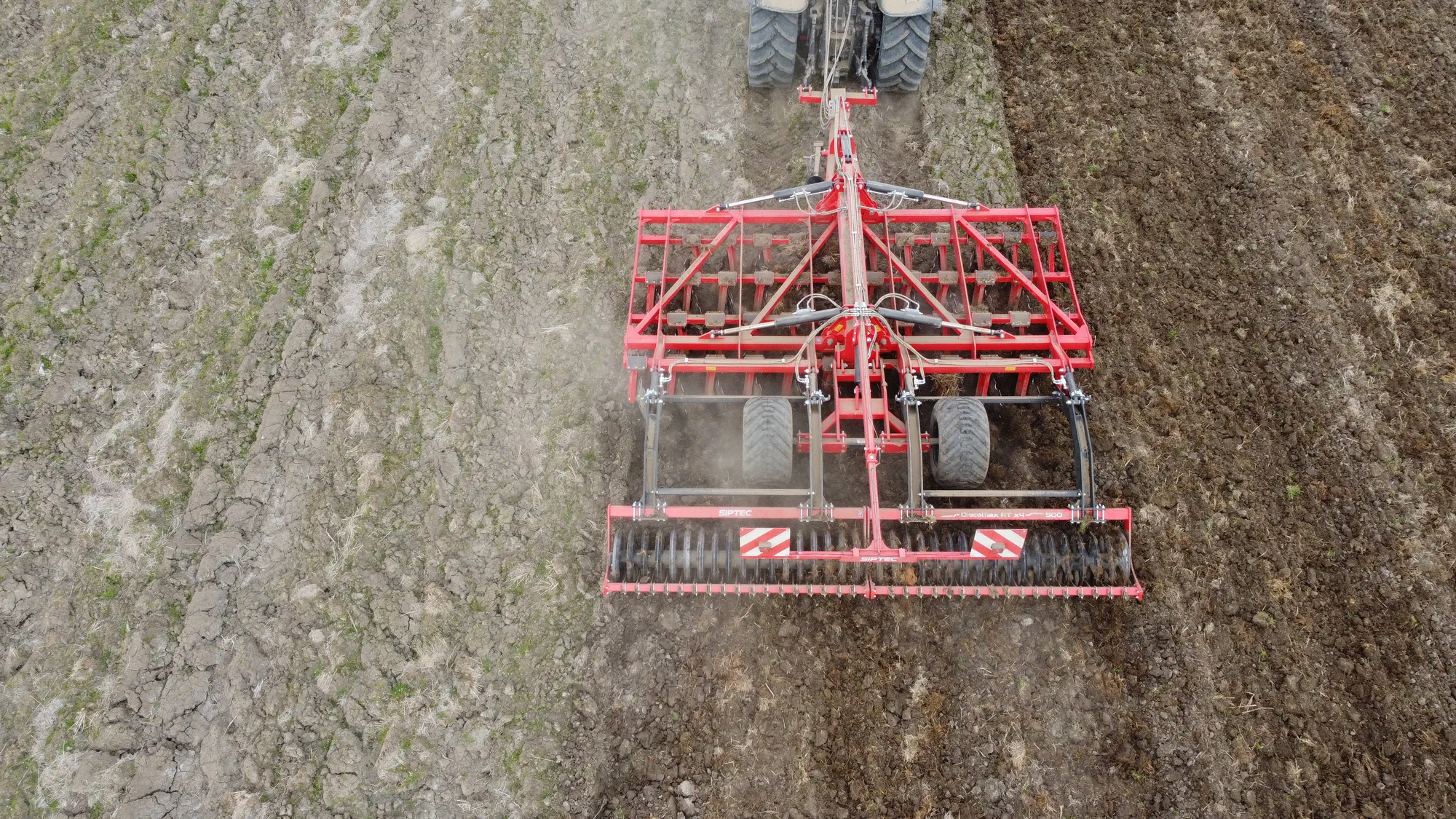

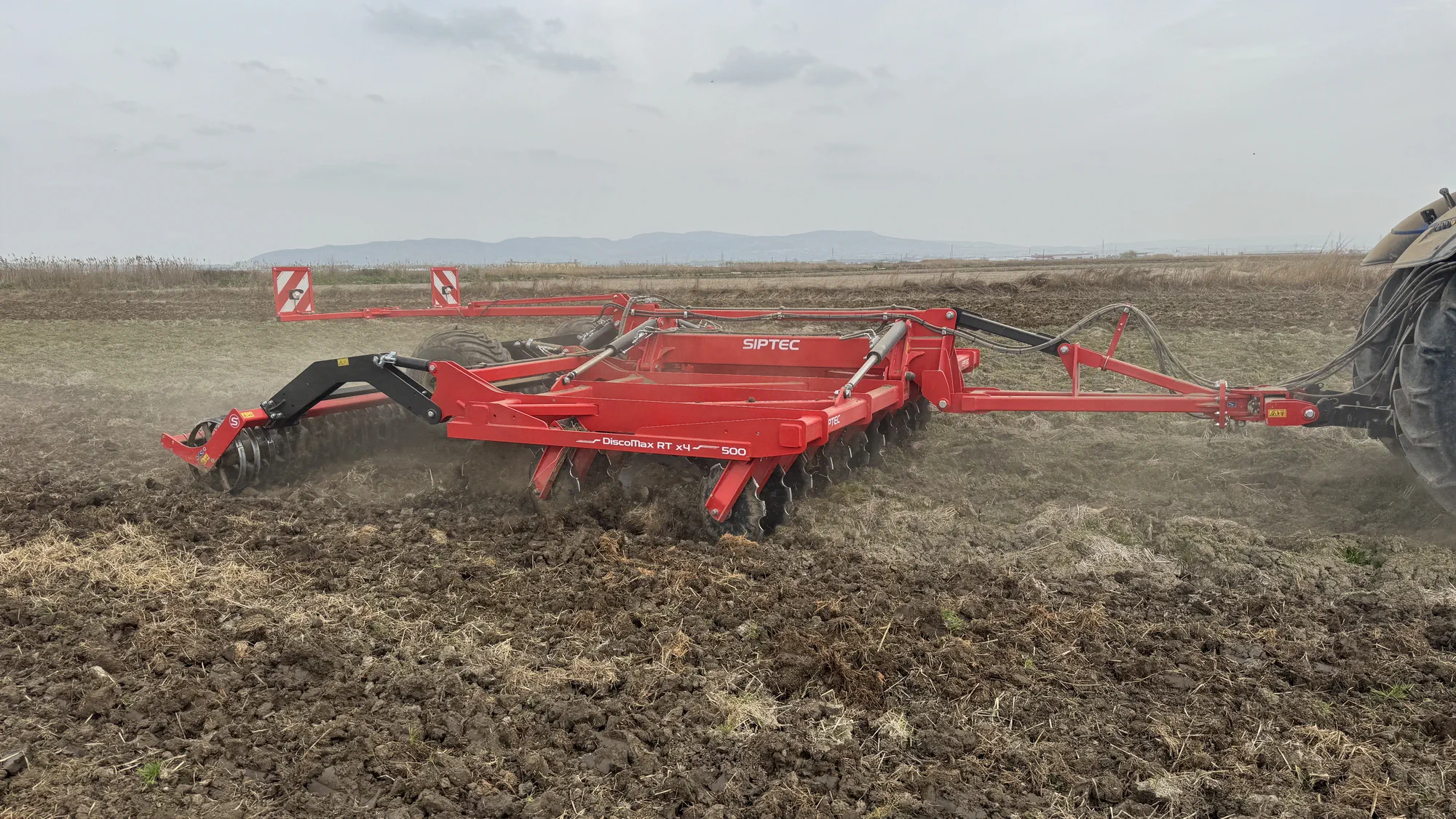

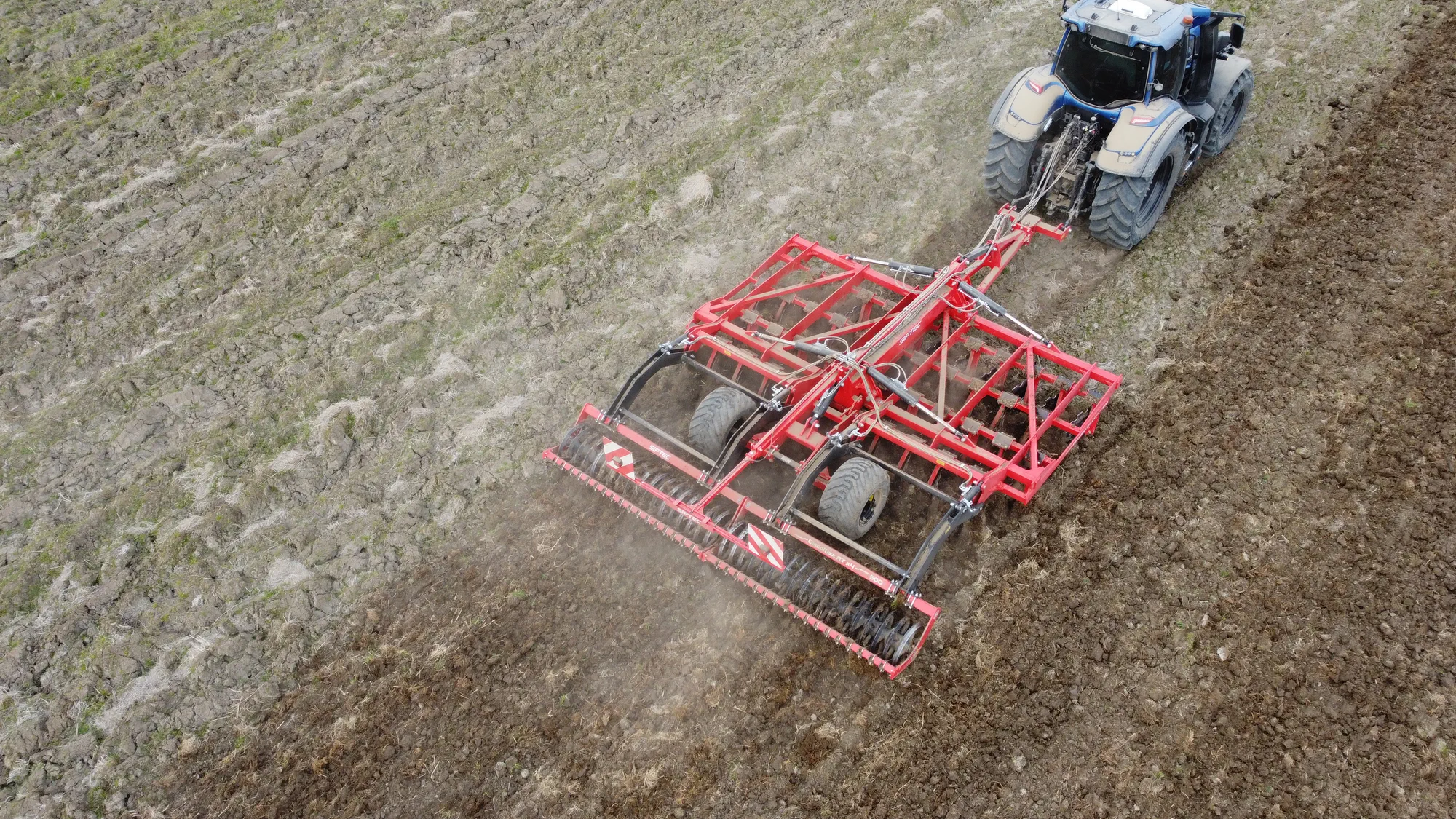

Photo Gallery
